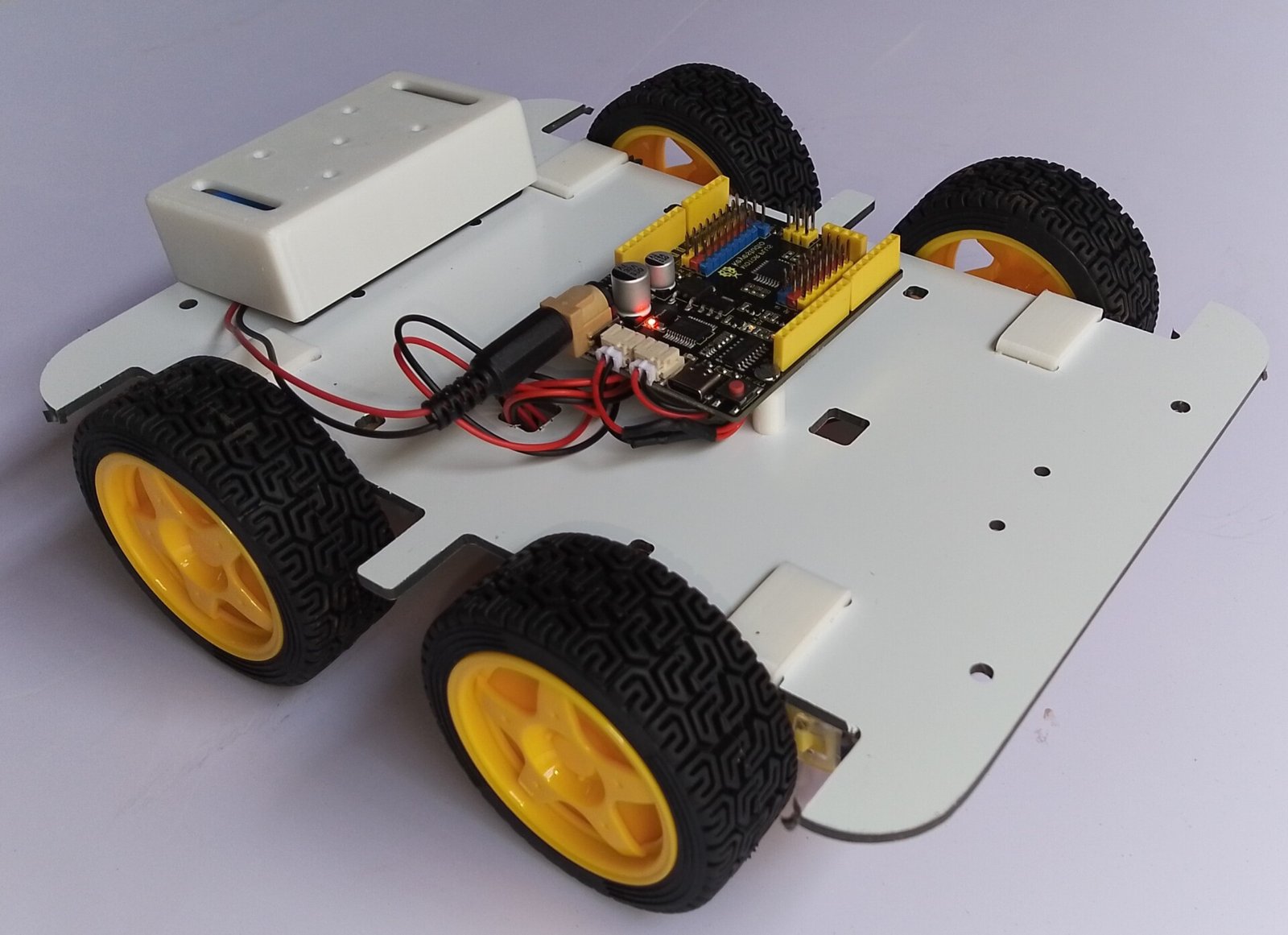

The integral-makers 4WD robot car chassis is equipped with 68mm rubber wheels, and controlled from a single board based on Arduino UNO R3 Motor PLUS (from Keyestudio).

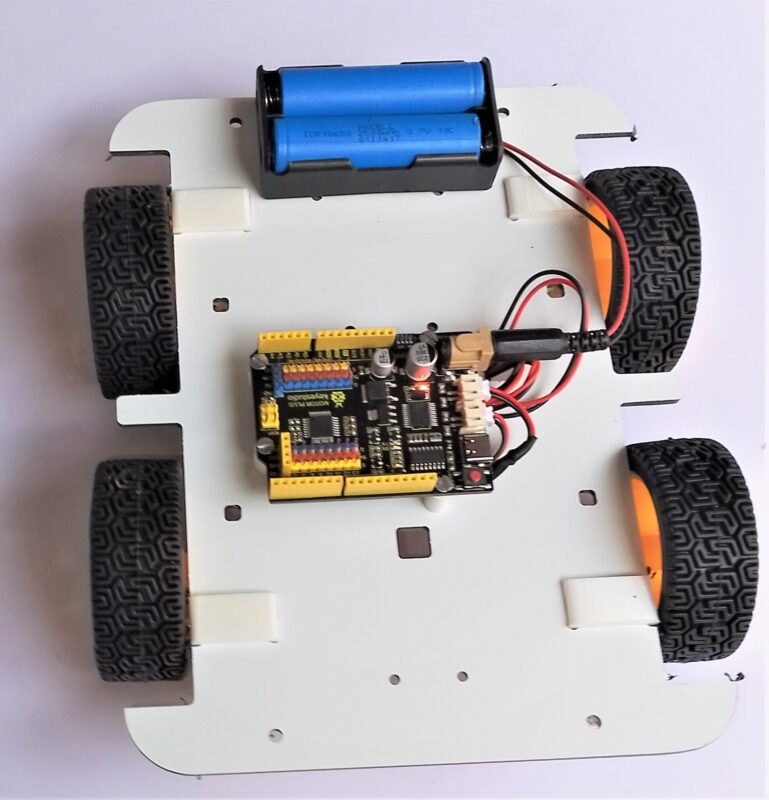

Chassis top
The special Arduino board has embedded TB6612 H bridge enabling efficient control of motors directly without additional (shield) circuitry. The use of a single board with simplifies the car design, since the board comes with three pin expansion on each digital and analogue pins hence simplifying direct connection to additional sensors and actuators.
Keyes Arduino Motor plus
Specifications
- USB to serial port chip: CH340
- Working voltage: 5V
- External power supply: DC 6-15V (8V recommended)
- Digital I/O pins: 14 (D0-D13)
- PWM channels: 6 (D3 D5 D6 D9 D10 D11)
- Analog Input Channels (ADC): 8(A0-A7)
- DC output capability per I/O: 20 mA
- Maximum power: 7.5W
- Maximum output current of motor interface: 1.5A
- Motor interface: PH2.0mm-2P socket
Parts (Assembled Car Chassis)
- 4 Wheels and motors
- 170mm by 230mm metal chassis
- Battery holder and cover (18650 batteries not included)
- Arduino Uno R3 motor plus (TB6612fng)
- Line following sensor, Ultrasonic obstacle avoidance module and BLE module (purchased separately)
