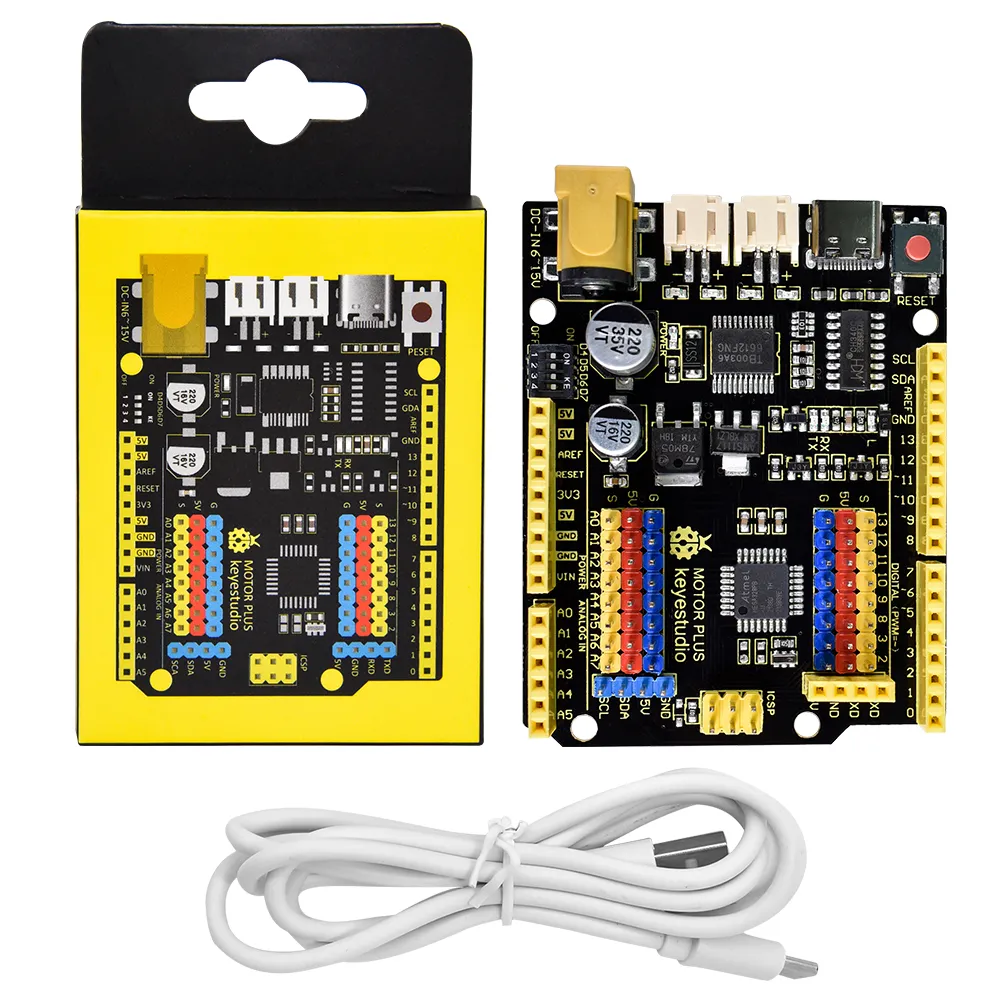

Keyestudio UNO Motor PLUS Board

KSh 2,150.00

The Keyestudio UNO Motor PLUS Board is an Arduino-compatible development board with integrated motor control capabilities. It simplifies the design of motor-driven robotics projects and small automation systems.

Features

Based on the ATmega328P microcontroller Onboard motor driver circuitry (DC and stepper motors) 14 digital I/O pins and 6 analog inputs Compatible with Arduino IDE. Easy integration for robotics projects small robotics projects Motorized prototypes and vehicles.

Applications

Educational STEM kits

Automation projects with motor control

Compare
Add to wishlist
SKU: IPKA3H Category:
Description

Specifications

  • USB to serial port chip: CH340
  • Working voltage: 5V
  • External power supply: DC 6-15V (9V recommended)
  • Digital I/O pins: 14 (D0-D13)
  • PWM channels: 6 (D3 D5 D6 D9 D10 D11)
  • Analog Input Channels (ADC): 8(A0-A7)
  • DC output capability per I/O: 20 mA
  • 5V port output maximum capacity: 1.5A
  • Maximum power: 7.5W
  • Maximum output current of motor interface: 1.5A
  • Motor interface: PH2.0mm-2P socket
  • Flash Memory: 32 KB (of which the bootloader uses 0.5 KB)
  • SRAM: 2KB (ATMEGA328P-AU)
  • EEPROM: 1 KB (ATMEGA328P-AU)
  • Clock Speed: 16MHz Onboard LED pin: D13
  • Weight: 21g
  • Size: 71mm*53mm*12mm
